0050P23 SUPPORT TROLLEYS FOR HIGH TEMPERATURE IN AUTOCLAVE

Aggiornamento: 6 mag 2023


Capacity = 2000 Kg

(Even with concentrated points loading mode - Contact pressure limit = 2 kg/cm2)



This apparently simple forklifted trolley has the function of supporting precious molds for car bodies. It can withstand temperatures up to 200 °C and pressurized environments.


What kind of molds?

Carbon fiber fairings for PAGANI AUTOMOBILI !


The trolley has a surface completely covered with slots on which to quickly connect telescopic jacks or specific brackets for the different molds to be supported.


It can also be put on fork and lifted whole or just the compact support base.

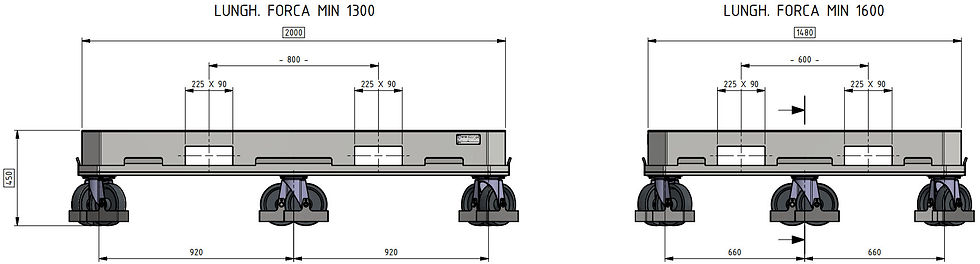

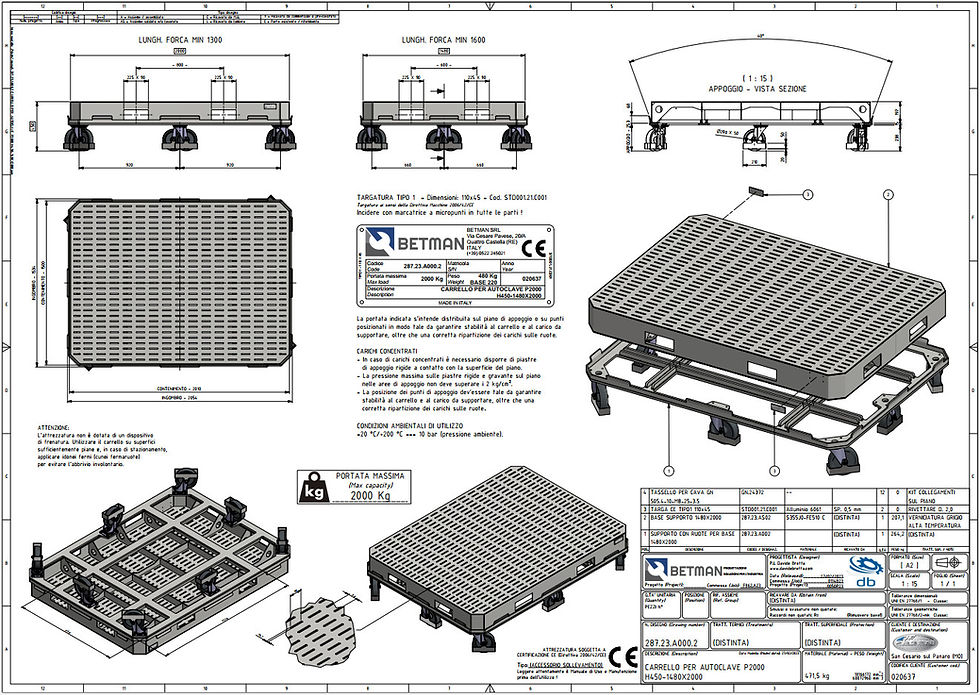

Different formats have been designed according to use and positioning limits.
