0053P23 CONFIGURABLE METAL SHEET TRANSPORT RACK

Aggiornamento: 2 lug 2023



High load capacity configurable rack

This is a for sheets metal transport with maximum

dimensions of 4 x 2 meters

It has the feature that it can be configured with

various different maximum openings



TECHICAL DATA

PAYLOAD

3300 KG

MAX FORKLIFTING

5000 KG

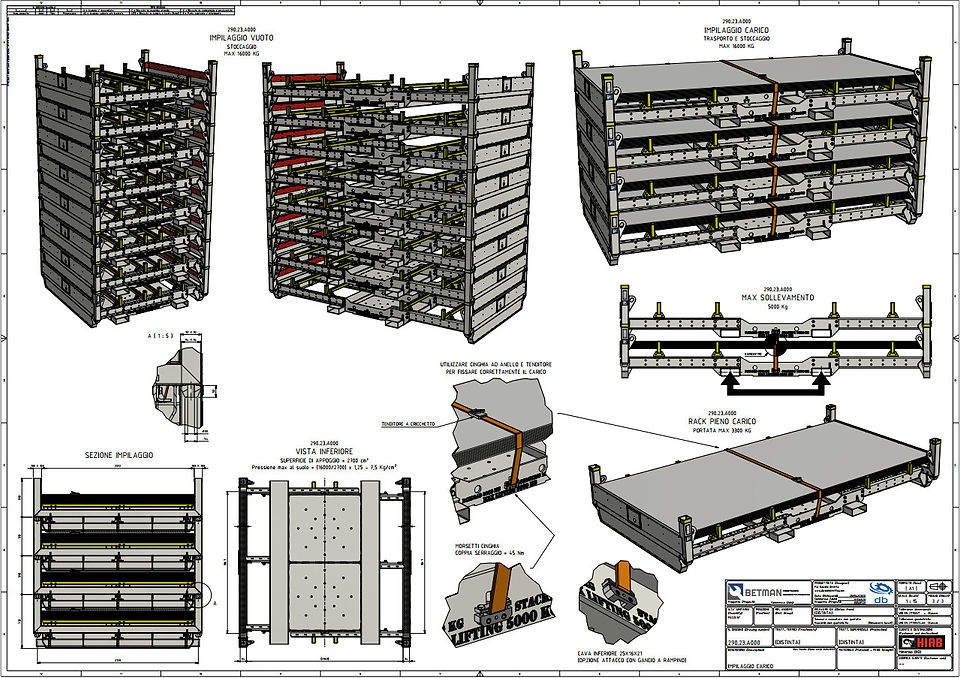

STACKING & TRANSPORT

16000 KG

EMPTY WEIGHT

700 KG

CAPACITY

4000 X 2000 X 100 mm

MAX SIZE

4110 X 2230 X 710 mm

MIN SIZE

2280 X 2230 X 710 mm

FORKS DISTANCE

1200 mm

It can be lifted with forklift or cranes with four lifting points,

transported on a truck or used for warehouse storage

It is particularly suitable for containing shaped metal sheet kits for bending operations


The load tacks can be positioned according to the load size

Sheet metal can be loaded and removed with a forklift or overhead crane


A special plastic material foils with 70 shore hardness

is applied to all surfaces in contact with the load




FEA stress analysis

was performed considering the various conditions of use and involved accelerations
