0088P24 CLAMP LIFTING & HANDLING EQUIPMENT

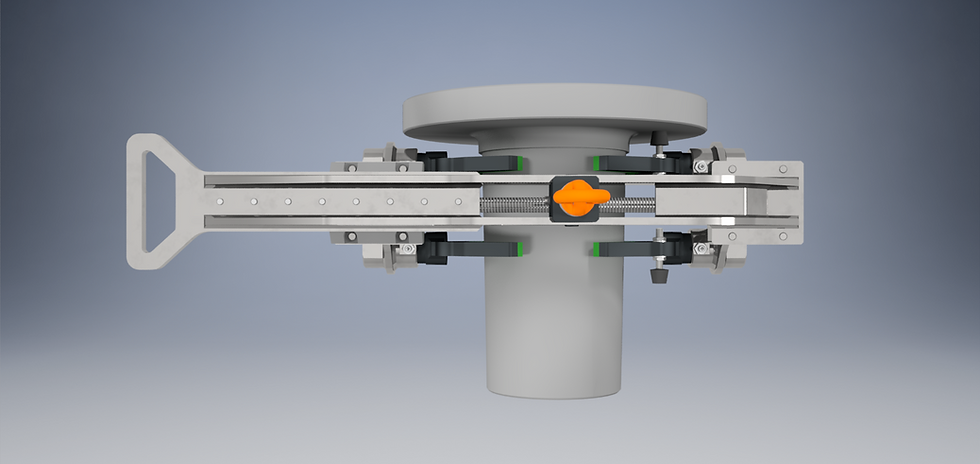

This equipment allows the gripping and baricentric lifting/handling of heavy metal artifacts with variable diameters.

The load is gripped by tightening two pairs of preloaded clamps with suitable springs, in order to compensate for variations in the irregular gripping diameter.

MAXIMUM LOAD CAPACITY = 200 Kg

MAX STROKE = 180 mm

Nominal diameter of the socket = 160 - 240 mm

The sizing was performed allowing a center of gravity lift in unloaded conditions and with various different types of load.

---
