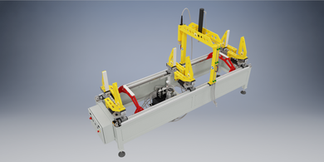

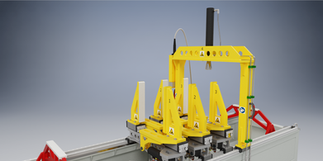

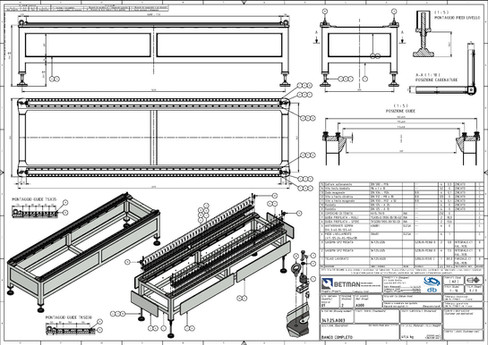

0114P25 PRESS BENCH FOR EXTENSIONS

This machine was designed, built and tested for the parallel and precise closing of various sheet metal shapes that will make up the crane extensions.

The machine has 3 + 1 hydraulically actuated control axes:

• Three pairs of synchronized clamps for horizontal centering, pressing, and then closing the loaded open sheet metal template;

• One presser for vertical pressing the upper edges of the template.

All axes have speed and hydraulic thrust adjustable via valves available on the system.

	MIN	MAX	MAXIMUM FORCE
HORIZONTAL	80 mm	380 mm	6000 daN
VERTICAL	100 mm	500 mm	7000 daN
